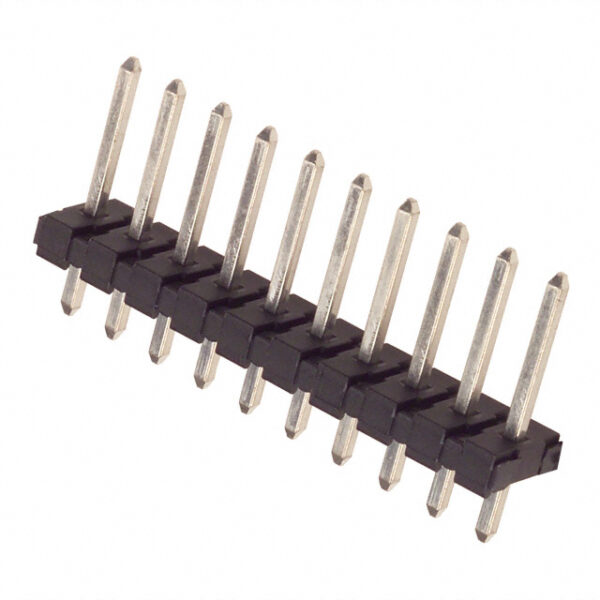

Product Description
Features:
1. 2.54/2.00/1.27/1.27*2.54mm,etc for your choose from.
2. Straight or SMT or Right angle ( customized as your wished).
3. No. of rows: single/ double/ tri-row is available with your request.
4. No. of positioners: 02 to 100 pins.
5. Usage: Pin header connector, used for most of home applicances,computer,PCB,LCD,TV,etc.
6. Contact material: Phosphor Bronze or Brass and other material
7. Insulator material: Nylon 6T or P.B.T.,LCP, etc. 30% G.F, UL94-V0 rated.
8. Plating: gold flash, Gold 5u”/10u”/15u”…. Gold flash/tin, matte tin,etc.
9. Pin length: customizes according to customer’s requirement.
10 Insulator height: 1.0/1.5/2.0/2.5/3.0mm…….
About electronic performance:
1. Current Rating: 3AMP
2. Contact resistance: 20 mΩ (Max)
3. Insulation resistance: 1000mΩ (Min)
4.Withstand Voltage: 1000V AC/ minute
5. Operation Temperature: -40°C to 105 °C
6. Contact plating: Au or Sn over 50u”Ni
