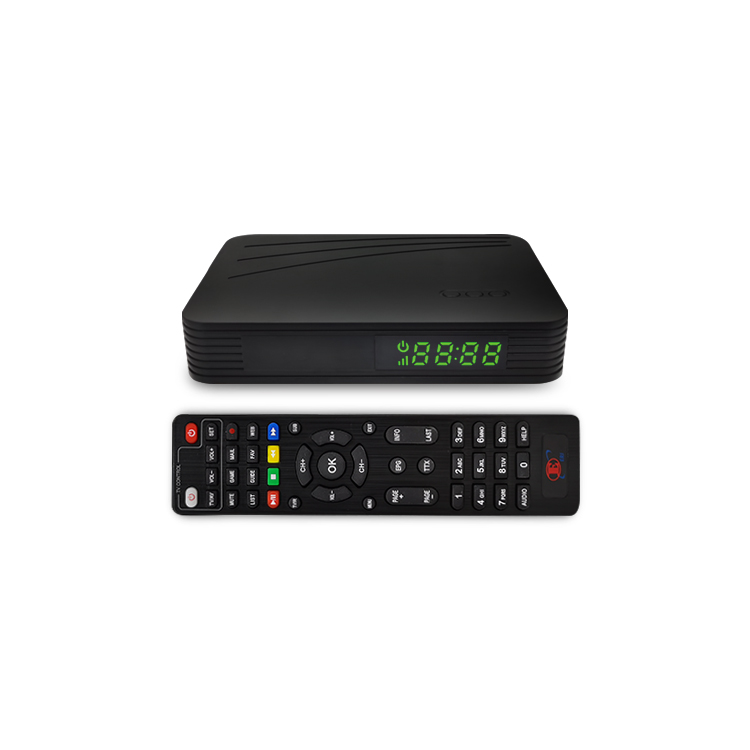

Digital Cable Set Top Box ERI-DVBCHD006

Standard:DVB-C (ITU-T J.83A/C,Annex B)
CPU Frequency:1500DMIPS 32bit
Flash:8MB
DDR3:128MB
Input Signal Range:38-100dBuV
Input Impedance:75Ω
Demodulation:16,32,64,128,256QAM
Bandwidth6M,7M,8M
Video Decoder:H.264, MPEG-4, MPEG-2, MPEG-1, SP/MP/AP
Video Output:HDMI 1.4
Video Format:PAL/NTSC
Aspect Ratio:4:3/16:9
Resolution:1080P,1080i,720P,576P etc.
Audio Decoder:MPEG1, MP3, MPEG-4 AAC&AAC+, DRA
Audio Output:HDMI1.4, A-L, A-R
Audio Mode:Left/Right/Stereo
Sampling Frequency:32KHz, 44.1KHz, 48KHz
Categorías: ,

Product Description

Software function for HD Digital Cable Set Top Box :

More DVB C model please click:www.eri-tech.com/product-category/set-top-box/dvb-c-box/

1.Fully Compliant with DVB-C Standard

2.MPEG-4/H.264 Decoded

3.720x480P@60Hz, 720x576P@50Hz

4.Normal/Advanced, Smart Based/COB/Soft CAS Supported

5.USB PVR/Time-shift Supported

6.Last Channel Memory & Multi-Language Supported

7.Auto/Manual Scan Selectable and Network Search Available

8.7-Day EPG, LCN, Games, Timer, Parental Lock and Fav. Group Available

9.Bouquet/TV Guide Function Optional

10.S/W Upgrade via RS232(On Main board)/OTA/USB Optional

11.NIT Auto Detect for Channel Change, LCN Change at Background Available

Basic information for CPU:

GX3113U1 is a high performance multi-standard HD decoder for DTV set-top box.

It integrates 32-bit CK610M CPU, DVB-C demodulator,128MByte DDR3, multi-standard video decoder

including MPEG2, MPEG4, AVS, AVS plus, H.264, H265, and multi-standard audio decoder,

deinterlacer and video post processor, true-color OSD and 2D graphics accelerator, TV encoder,

video DACs, audio DACs, HDMI transmitter, USB2.0 Host and so on. It guarantees powerful

function, excellent performance and low BOM cost.

The channel demodulator is designed to DVB-C, compossed of ADC, QAM demodulator, FEC,

etc.

The 32-bit CK610M CPU with high performance offers strong ability of software process, which

supports a great many advanced applications. The mature real-time operating system and API

library can shorten the developing period remarkably.

The multi-standard video decoder supports MPEG2/4, H.264, H265, AVS, AVS plus and

JPEG/MJPEG HD video decoding. Patented video post-processing unit achieves satisfied

deinterlacing and scaling effect.

The processor based audio decoder supports MPEGI/II, MP3, MPEG4 AAC, HE-AAC and DRA

decoding.

The PAL/NTSC encoder, One-channel video DAC and integrated HDMI1.4 transmitter can be

configured as many HD and SD video output mode. Concurrent HD and SD output mode

supported.

True-color OSD and 2D graphics accelerator may supply flowery menu effect, which can meet the

requirement of browsers. Meanwhile, owing to the flexible capture engine, we can design various

multi-picture browser and screen-capture functions.

USB2.0 Host may supply many advanced applications, such as PVR, and VOD with USB Wifi.

GX3113U1 is packaged with QFN68, which helps to reduce the PCB complexity and the BOM

cost. Sum up, by the flexible configuration, GX3113U1 can meet the high performance

multi-standard requirement of HD STB market.
