Product Description
1.Scope：

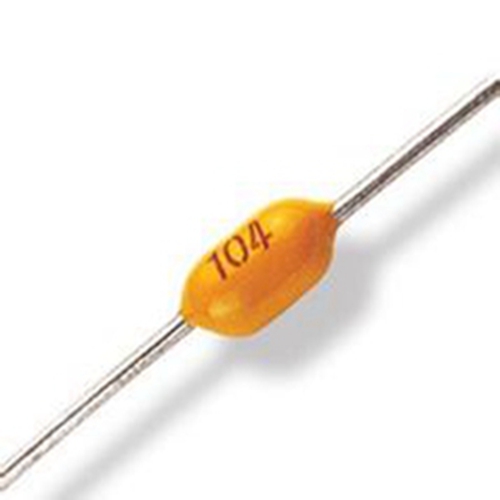

This specification applies toAxial leaded type Multilayer Ceramic Capacitors produced by our company for use in electronic equipment of (name of customer)
2.Standard：
《Detail specification for electronic components fixed ceramic dielectric capacitors CC42 Assessment level E》 GBT5966-96
《Detail specification for electronic components fixed ceramic dielectric capacitors CT42 Assessment level E》 GBT5968-96
3.Classify：
CC42：Material of dielectric is: COG、NPO（N）。
CT42：Material of dielectric is:X7R（B）、Z5U、Y5V（Y）。
4.Test Conditions：
4.1：Standard Condition：If there are no specific prescribe，The test will be done according to standard condition(Temperature 15-35℃;Relative Humidity 45-75%), But If there are any problems subject to standard condition or there are some specific requirements Please test according to 4.2
4.2：Fundamental Condition：Temperature is 20℃;Relative Humidity is 60-70%;Atmospheric pressure is 800-1060mbar。
4.Testing Method：
When the products will be tested, In order to avoid the error of result, The capacitors must be placed in the temperature that the capacitors be tested for 30 minutes and discharged fully.
